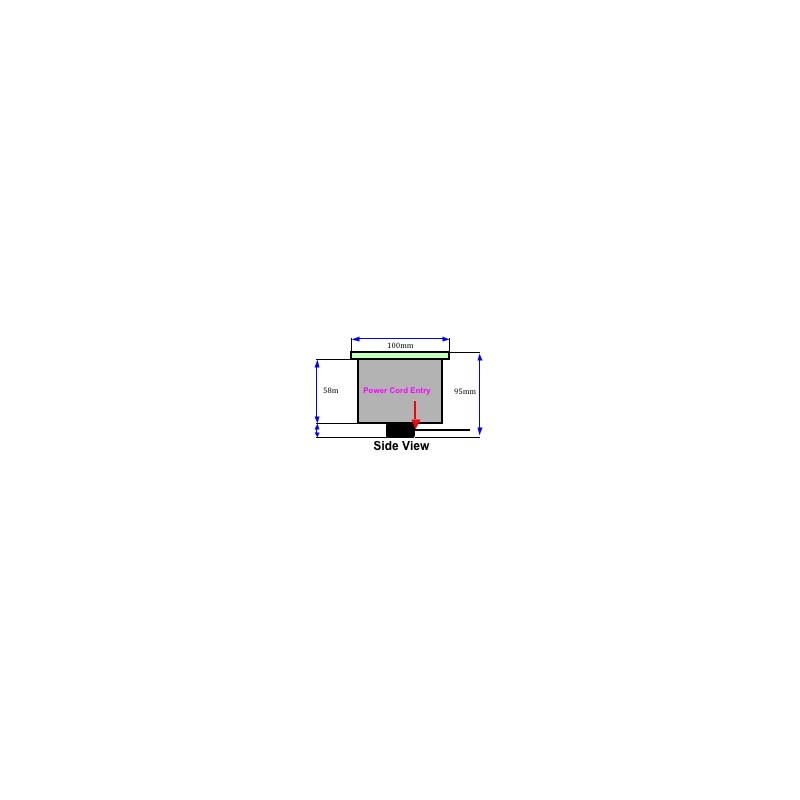

GLASS & STAINLESS STEEL BRICK 1.3 Watt ,18 LEDS RGB ,100x100x70

GENERAL INFORMATION

Colour Range:   Full Colour Spectrum  3.6 Million colours.

LED:                  18 LEDs     6  Red,  6 Green,  6 Blue

Glass:                12 mm thickness, Toughened frosted glass.

Wiring:               4-core cable, which enters from the bottom.

                          (Each brick supplied with 7m of cable)

Casing:              Stainless Steel

LED Angle:        120 Degrees Diffused

Features:        - Glass brick can withstand approx 1.2 tons.

-  Lock on to any colour you choose.

TEMPERATURE /  IP  RATING

Temperature:    Approximately –35°C to 75°C

                           Weather resistant

IP Rating:          IP 67 Rating

POWER SUPPLY

Power Supply:                24 Volts DC Out put

                                         240 Volts AC 50 Hz Input

Power Consumption:     1.3 Watts per paver

Power:                             24 Volts per paver

Controller:                       Programmed for automatic colour changing, built into transformer Includes manual colour lock button (Sold Seperately)

Life of LED Bulb:

Under controlled Australian environmental conditions and normal operating circumstances, according to LED manufacturers specifications our LED glass pavers are expected to last approximately 100,000 hours. Customers can expect a slight depreciation in brightness in the estimated 100,000 hours lifetime.

NOTES

Order Number: #LED3310

LED Transformer Wattage would depend on quantity of pavers purchased and distance from the power supply. Refer to installation diagram.
